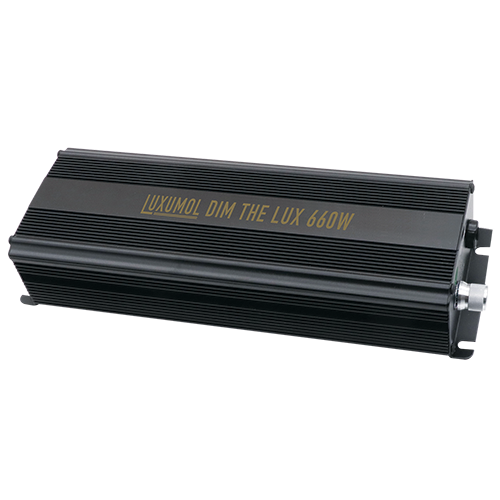

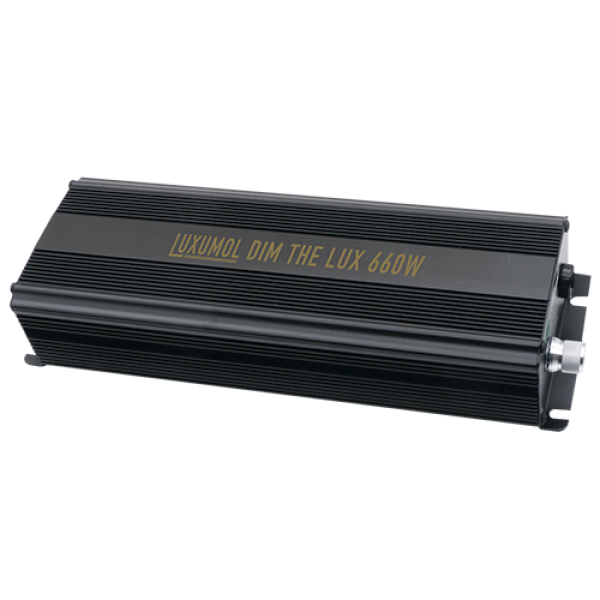

Luxumol Ballast Digital - Dim the lux 660w

Prix : 74,90 €
Remise :
Prix / Kg:
  STOCK : 29 product(s)
ballast type
électronique
Puissance
600W

Description du produit



Luxumol Dim The Lux 660W dimmable excl. IEC cable

Spec.of Electronic Ballast
Type:600W (220-240V)

1.Size
1.1 Rectifier Length(L) [mm] 270± 2
1.2 Rectifier Width(W) [mm] 100± 2
1.3 Rectifier Heigth(H) [mm] 60± 2
2.Data of Ballast
2.1 Starting voltage min. [V] 180 Vac
2.2 Starting time [S] 5Max
2.3 Pulse voltage [KV] 3-4.5kv
3.Lamp electrical parameter
3.1 Lamp type MH/HPS600W
3.2 Lamp voltage [V] 120(HPS)
3.3 Lamp current [A] 5
3.4 Lamp wattage [W] 600
4. Input parameter
4.1 Input voltage [ V] 230 Vac
4.2 Current reference [A] 3(super)
4.3 Input wattage [W] 680((super)
4.4 Input frequency [HZ] 50/60
4.5 Power factor [ cos

Φ] ≥0.98
4.6 THD / ≤10
5.Output parameter
5.1 Output frequency [kHz] 70-210
5.2 The dimming range 4(250,400,600,super)
5.3 Open circuit voltage [V] ≤400
5.4 Crest factor ≤1.7
5.5 Factor ≥94.5%
6. Other
6.1 Surface temperature [℃] 70Max.
6.2 Ambient temperature [C°] -20-30

WARNING
a. Ensure the power shut down before check, install or replace the bulb.
